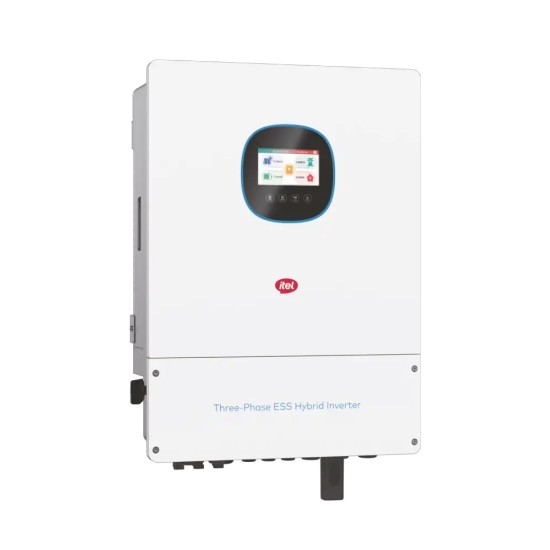

ITEL 8kW IP66 3 Phase Hybrid Solar Inverter

The latest ITEL 8kW IP66 3 Phase Hybrid Solar Inverter price in Pakistan is Rs. 420,000/- updated on July 16, 2025.

Product Details:

The ITEL 8kW IP66 Hybrid Inverter is a robust and efficient energy solution designed for both residential and commercial solar systems. With its IP66 ingress protection rating, it is well-suited for outdoor installations, offering protection against dust and heavy rain.


Features:

  • Rated Power: 8,000W
  • Battery Voltage: 48V DC
  • MPPT Channels: Dual MPPT for optimal energy harvesting
  • Surge Power: 16,000VA (15-second peak)
  • Output Voltage: 220/380V or 230/400V (Three-phase)
  • Switch Time to Backup Mode: 10ms
  • Battery Compatibility: Supports Lead-Acid, Li-ion, and user-defined batteries

Documents:

Product Details
Product Name ITEL 8kW IP66 Hybrid Solar Inverter
Price Rs. 420,000/-
Summary
Voltage range 40V-60V
Apparent Power 8800VA
Output Power 8000W
Output Current 12A/13.3A
HARDWARE FEATURES
Battery Voltage 48VDC
Input Current 18A/18A
Input Power 16000W
Output Voltage Range 180~280VAC (L-N)
TECHNICAL SPECIFICATION
Operating Altitude 4000m >2000m Power Derating
General Specification
Authentication Method IEC62109-1, IEC62109-2, IEC61683, IEC62116, IEC61727
Battery Type Lead-acid/Li-ion/User Defined
Communication WIFI/RS485/CAN/Dry Contact
Frequency Range 45~65Hz
Operating Temperature Range -25~60 , >45°C Power Derating
Protection IP66
Voltage 150V
Weight 38 kg
Input Voltage 1000V
Dimensions 256*475*683 mm
Output Voltage 220/380VAC, 230/400VAC
