Inverex Nitrox 6.6kW Hybrid Solar Inverter

Product Details:

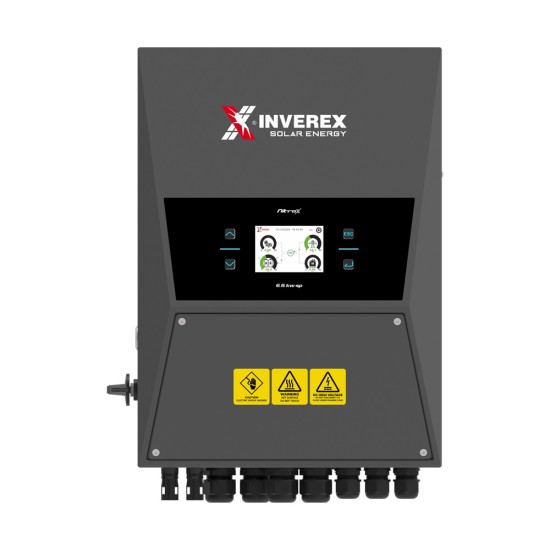

The NitroX 6.6KW SP Hybrid Inverter is a powerhouse for modern solar systems. Built to handle high solar input and smart energy management, it’s ideal for hybrid homes and businesses demanding top performance and reliability.

Features:

• 10.5KW PV Input: Wide 150–425VDC MPPT for max energy capture

• Dual MPPTs: Independent strings (2/1+1) for efficient tracking

• 140A Charge/Discharge: Fast cycles, perfect for large systems

• Parallel Ready: Stack up to 16 units, both on-grid & off-grid

• Touch LCD + IP65: Vibrant screen in weatherproof casing

• AC Coupling: Retrofit-friendly for system upgrades

• Time-Based Battery Mode: 6 customizable time slots for charging/discharging

• Generator Support: Stores DG energy for hybrid setups

• Silent Operation: Under 30 dB noise, suitable for indoor use

• Air Cooling: Smart thermal control from -40°C to +60°C

• Advanced Protections: Overcurrent, islanding, surge, fault detection

• High Efficiency: 97.6% peak efficiency with <0.5% DC ripple

• Smart Communication: RS485/RS232/CAN + optional WiFi/4G

• 5-Year Warranty: Backed by trusted Inverex support
