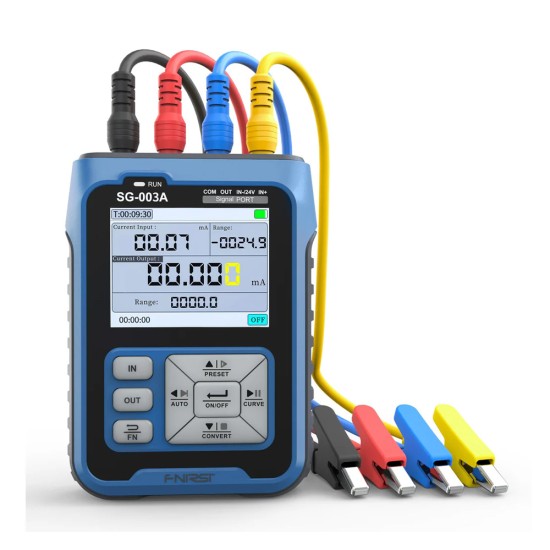

Fnirsi FR SG003A LOOP CALIBRATOR

Product Details:

The FR SG003A is a robust multi-functional calibrator designed for field engineers, instrument technicians, and control system specialists. It serves as a loop calibrator, signal generator, and process meter—all in a compact, handheld device.

Features:

• Current Output/Input: 0–24 mA, ±(0.1% + 0.005), 0.01 mA resolution

• Voltage Source/Measure: 0–24 V, ±(0.1% + 0.005), 0.01 V resolution

• Frequency/PWM: 0–9999 Hz, ±2% accuracy, 5-digit resolution

• Max Load: 750 Ω for current source; 30 mA max voltage output

• Loop Power Supply: 12 V / 24 V selectable (max 24 mA)

• Dimensions/Weight: ~112 × 82 × 28 mm; ~165 g

• Battery: 3.7 V / 3000 mAh – USB-C recharge
