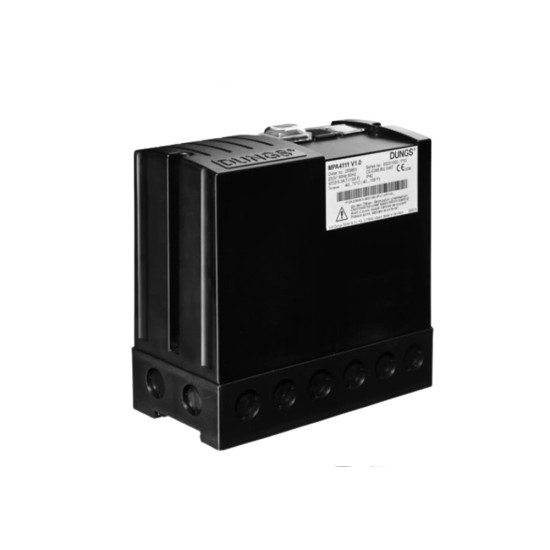

Dungs MPA 4112 Automatic Burner Control (with Integrated display)
Rs. 144,350/-
Available Options
Dungs MPA 4112 Automatic Burner Control (with Integrated display) price in Pakistan is
Rs. 144,350/-
. W11stop.com has wide range of Industrial Automation & Circuit Protection with cash on delivery service in Karachi, Lahore, Multan, Peshawar and many other cities.
The latest Dungs MPA 4112 Automatic Burner Control (with Integrated display) price in Pakistan is Rs. 144,350/- updated on May 11, 2025.
The program sequence and times can be customized by setting software parameters
OVERVIEW:
Microprocessor-controlled automatic gas burner control for intermittent and continuous operation of one-stage atmospheric burners or one-stage or modulating fanned burners.The program sequence and times can be customized by setting software parameters
Application:
For one-stage or modulating gas burners with or without ignition gas. In particular for industrial term processing equipment to EN 746-2.Document:
Dungs MPA 4112 Automatic Burner Control (with Integrated display)| Product Details | |
| Product Name | Dungs MPA 4112 Automatic Burner Control (with Integrated display) |
| Price | Rs. 144,350/- |
| Frequency | |
| Sensitivity | Shutdown : 1,2 µA |
| Summary | |
| Ambient Temperature | -40 °C - +70 °C | -20 °C - +60 °C (UL approval) |
| Physical & Electrical | |
| Power Consumption | max. 6.3 A slow-blow or 10 A fast-blow |
| TECHNICAL SPECIFICATION | |
| Protection degree | IP42 |
| Rated Voltage | (depending on the model) : 115 VAC -15 % ... +10 % | 230 VAC -15 % ... +10 % |
| Fuse | Operational : Suitable for use up to 2000 metres above sea level |
| General Specification | |
| Frequency | 50 Hz...60 Hz |
| Type | Automatic Burner Control |
